Stainless Steel Seamless Tube, ASTM A213-2018 TP304, TP304L, 8*1*6000MM, MIN. WALL THICKNESS
Our main products: Stainless/Duplex/Nickel Alloy Pipe/Tube:
1>.A:Stainless Steel Grade: TP304/304L/304H, TP310S/310H, TP316/316L/316Ti/316H, TP317L/317LN, TP321/321H, TP347/347H, NO8904(904L),
B:PH Stainless Steel:17-4PH(1.4542), 17-7PH(1.4568),15-7PH(1.4532)
C:Duplex Steel Grade: S31803(2205), S32750(2507), S32760, S32304, S32101, S31254(254Mo), 235Ma, UNS NO8926, NO8367.
D:Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.
Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.
Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105.
2>.Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,...
3>.Out diameter sizes range: 0.5mm~650mm. Wall thickness:0.05mm~60mm. Max. length under 26 meters/PC.
4>.Seamless & welded, Solution Pickling/Bright Annealed / Polished.
Advantage Products: (Boiler & Heat Exchanger & Condenser Tube):
ASTM A213(TP304,TP304L,TP304H,TP310S,TP316L,TP316Ti, TP317/L, TP321/H, TP347/H)
ASTM A249(TP304,TP304L,TP316L, TP321/H)
ASTM A789(S31803(2205), 32750(2507), S31254(254MO),S32304)
ASTM B163/B167/B444 for Nickel Alloy Steel Tube
ASTM B677 UNS NO8904(904L)
ASTM B111(70400, C70600, C71500, C71640, C68700, C44300)
Other Standard: EN10216-5, DIN 17456, DIN17458, GOST9941-81, JIS-G3459, JIS-G3463
| Grade | Material
number | C | Si | Mn | P | S | N | Cr | Mo | Ni | Ti | others |
| Ferritic or martensitic steels |
| X2CrTi12 | 1.4512 |  0.030 | 1.00 | 1.00 | 0.040 | 0.015 | | 10.50to12.50 | | | 6×(C+N)to0.65 | |
| X6CrAl13 | 1.4002 | 0.08 | 1.00 | 1.00 | 0.040 | 0.015 | | 12.00to14.00 | | | | 0.10to0.30Al |
| X6Cr17 | 1.4016 | 0.08 | 1.00 | 1.00 | 0.040 | 0.015 | | 16.00to18.00 | | | | |
| X3CrTi17 | 1.4510 | 0.05 | 1.00 | 1.00 | 0.040 | 0.015 | | 16.00to18.00 | | | 4×(C+N)+0.15 to 0.80 | |
| X12Cr13 | 1.4006 | 0.08 to 0.15 | 1.00 | 1.50 | 0.040 | 0.015 | | 11.50to13.50 | | 0.75 | | |
| Austenitic steels |
| X5CrNi18-10 | 1.4301 | 0.07 | 1.00 | 2.00 | 0.045 | 0.015 | 0.11 | 17.00to19.50 | | 8.00to10.50 | | |
| X2CrNi19-11 | 1.4306 | 0.030 | 1.00 | 2.00 | 0.045 | 0.015 | 0.11 | 18.00to20.00 | | 10.00to12.00 | | |
| X2CrNiN18-10 | 1.4311 | 0.030 | 1.00 | 2.00 | 0.045 | 0.015 | 0.12to0.22 | 17.00to19.50 | | 8.50to11.50 | | |
| X6CrNiTi18-10 | 1.4541 | 0.08 | 1.00 | 2.00 | 0.045 | 0.015 | | 17.00to19.00 | | 9.00to12.00 | 5×C to 0.70 | |
| X6CrNiNb18-10 | 1.4550 | 0.08 | 1.00 | 2.00 | 0.045 | 0.015 | | 17.00to19.00 | | 9.00to12.00 | | 10×Cto1.00Nb |
| X5CrNiMo17-12-2 | 1.4401 | 0.07 | 1.00 | 2.00 | 0.045 | 0.015 | 0.11 | 16.50to18.50 | 2.00to2.50 | 10.00to13.00 | | |
| X2CrNiMo17-12-2 | 1.4404 | 0.030 | 1.00 | 2.00 | 0.045 | 0.015 | 0.11 | 16.50to18.50 | 2.00to2.50 | 10.00to13.00 | | |
| X6CrNiMoTi17-12-2 | 1.4571 | 0.08 | 1.00 | 2.00 | 0.045 | 0.015 | | 16.50to18.50 | 2.00to2.50 | 10.50to13.50 | 5×C to 0.70 | |
| X2CrNiMoN17-13-3 | 1.4429 | 0.030 | 1.00 | 2.00 | 0.045 | 0.015 | 0.12to0.22 | 16.50to18.50 | 2.50to3.00 | 11.00to14.00 | | |
| X2CrNiMo18-14-3 | 1.4435 | 0.030 | 1.00 | 2.00 | 0.045 | 0.015 | 0.11 | 17.00to19.00 | 2.50to3.00 | 12.50to15.00 | | |
| X3CrNiMo17-13-3 | 1.4436 | 0.05 | 1.00 | 2.00 | 0.045 | 0.015 | 0.11 | 16.50to18.50 | 2.50to3.00 | 10.50to13.00 | | |
| X2CrNiMoN17-13-5 | 1.4439 | 0.030 | 1.00 | 2.00 | 0.045 | 0.015 | 0.12to0.22 | 16.50to18.50 | 4.00to5.00 | 12.50to14.50 | | |
Specification:
ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-
Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.
ASTM A213-2018:Standard Specification for Welded Austenitic Steel Boiler, SuperheaterHeat-Exchanger, and Condenser Tubes.
Other Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...
Material Grade:
| American Standard | Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,... |
| Europen Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| GOST | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Size Range:
| Production | Outside Diameter | Wall Thickness |
| Heat Exchanger Tube | 6.00mm to 101.6mm | 0.5mm to 8mm |
Final Finishing
Solution Annealed & Pickled/Bright Annealed.
Type of Tubes:
U-bend & Straight.
Some of the quality tests carried out by us includes:
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
- Eddy Current Testing
- O.P Testing
- Radiography Testing
| - Corrosion Testing
- Micro Testing
- Macro Testing
| - IGC Testing
- Ultrasonic testing
- Liquid Penetrate testing
|
Tag: seamless boiler tubes
Product Tags:
|
|

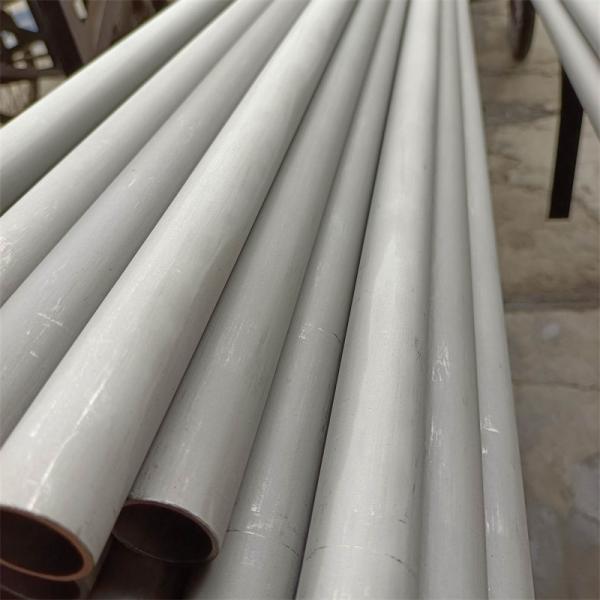

Austenitic Alloy Heat Exchanger Seamless Tube TP304 TP304L Images
|
